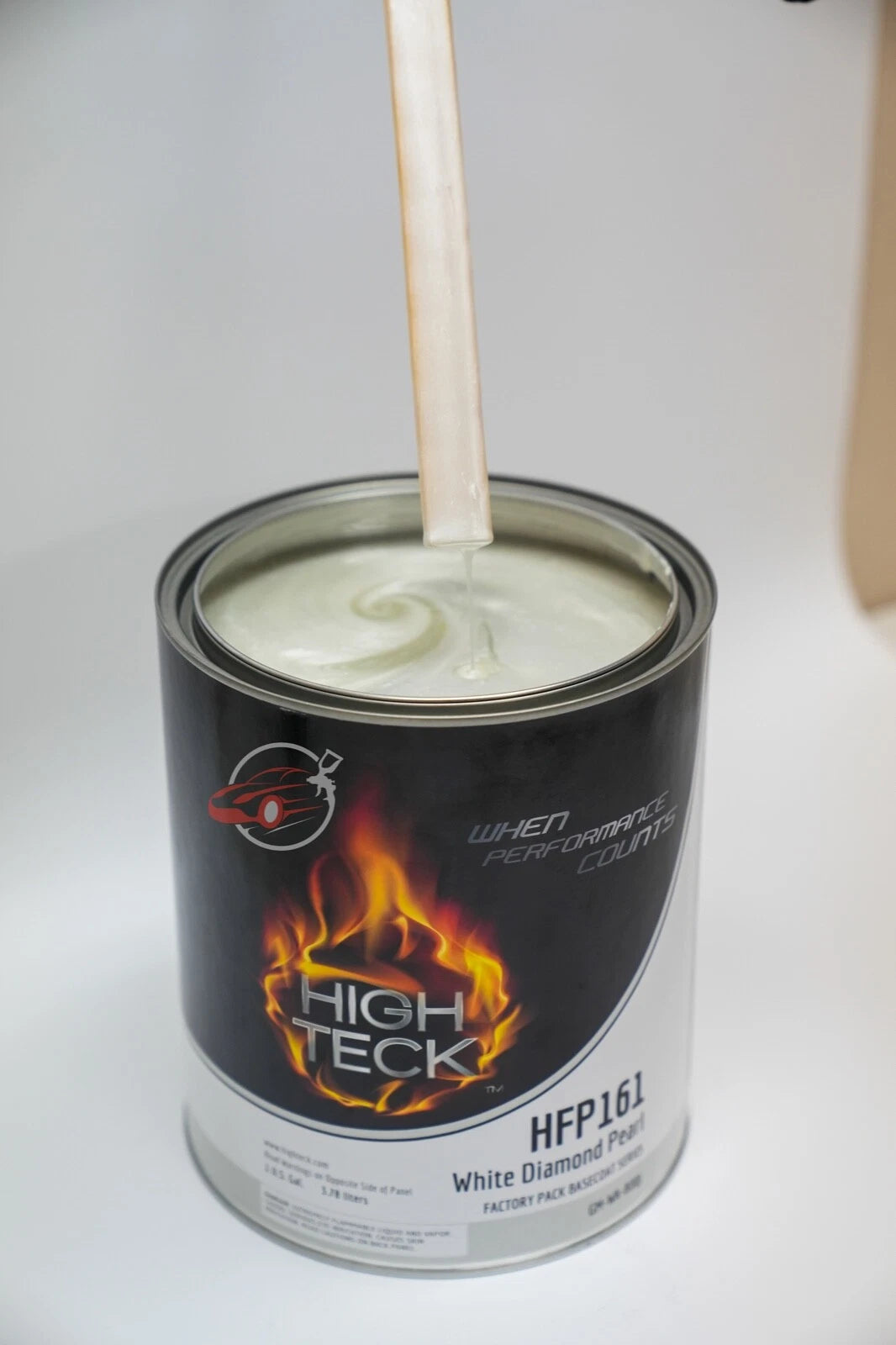

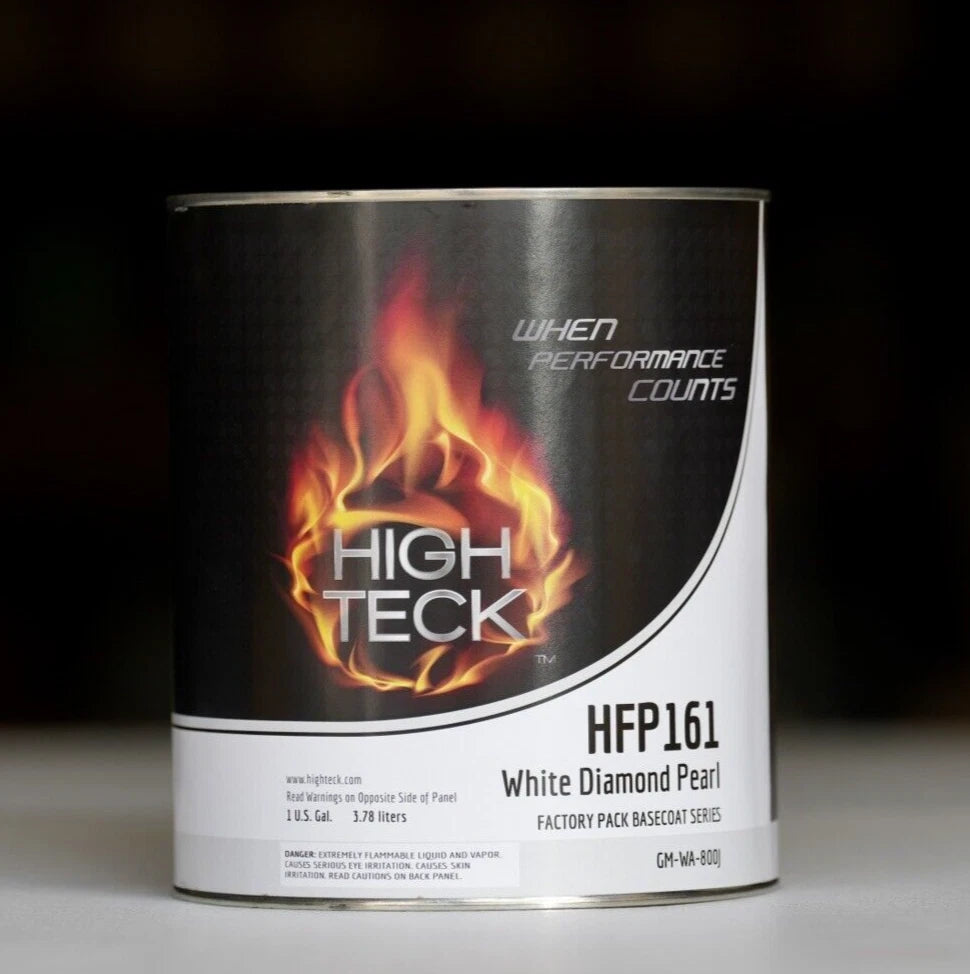

High Teck HFP161 White Diamond Pearl Midcoat GALLON Size! GM 800J Auto Car Paint

The High Teck HFP161 is a urethane-based pearl midcoat designed for tri-stage (or tri-coat) automotive paint systems, specifically matching GM's White Diamond Pearl (code WA800J/800J). This is the second stage in a three-stage process: a solid white ground/basecoat first, followed by this pearl midcoat for the shimmering effect, and topped with a clearcoat for protection and gloss. It's ideal for professional repaints on vehicles like Cadillac Escalade, Buick Park Avenue, or Chevrolet models from 2002–2017.

This guide compiles detailed techniques based on manufacturer data and standard automotive painting practices for pearl midcoats. Always prioritize safety: work in a well-ventilated spray booth, wear a respirator, gloves, and protective clothing.

Surface Preparation

1. Cleaning: Thoroughly degrease the surface using a wax and grease remover (e.g., High Teck 7800). Follow with a water-based cleaner to remove any residues. Wipe with lacquer thinner if needed to eliminate smudges, which show easily on light pearls. Wear gloves to avoid oil transfer from hands.
2. Sanding: Sand the primed or existing surface to 600–800 grit (wet or dry). For repairs, feather edges and extend the prep area 4–6 inches beyond the repair zone to aid blending. Use 1000 grit for light scuffing if recoating.
3. Masking: Mask off adjacent areas with tape and paper/plastic. Use back-masking (tape under edges) for clean lines on windows, trim, and panels.
4. Tacking: Use a fresh tack cloth to remove dust and lint. Let it air out for 15–20 minutes before lightly wiping the surface.
5. Optional Sealer: If the substrate is uneven or for better adhesion, apply a single coat of sealer (e.g., High Teck 1K Primer/Sealer) and let it flash for 15 minutes.

Ensure the surface is completely dry and free of contaminants—pearl midcoats amplify imperfections like fisheyes or dirt.

Mixing the Midcoat

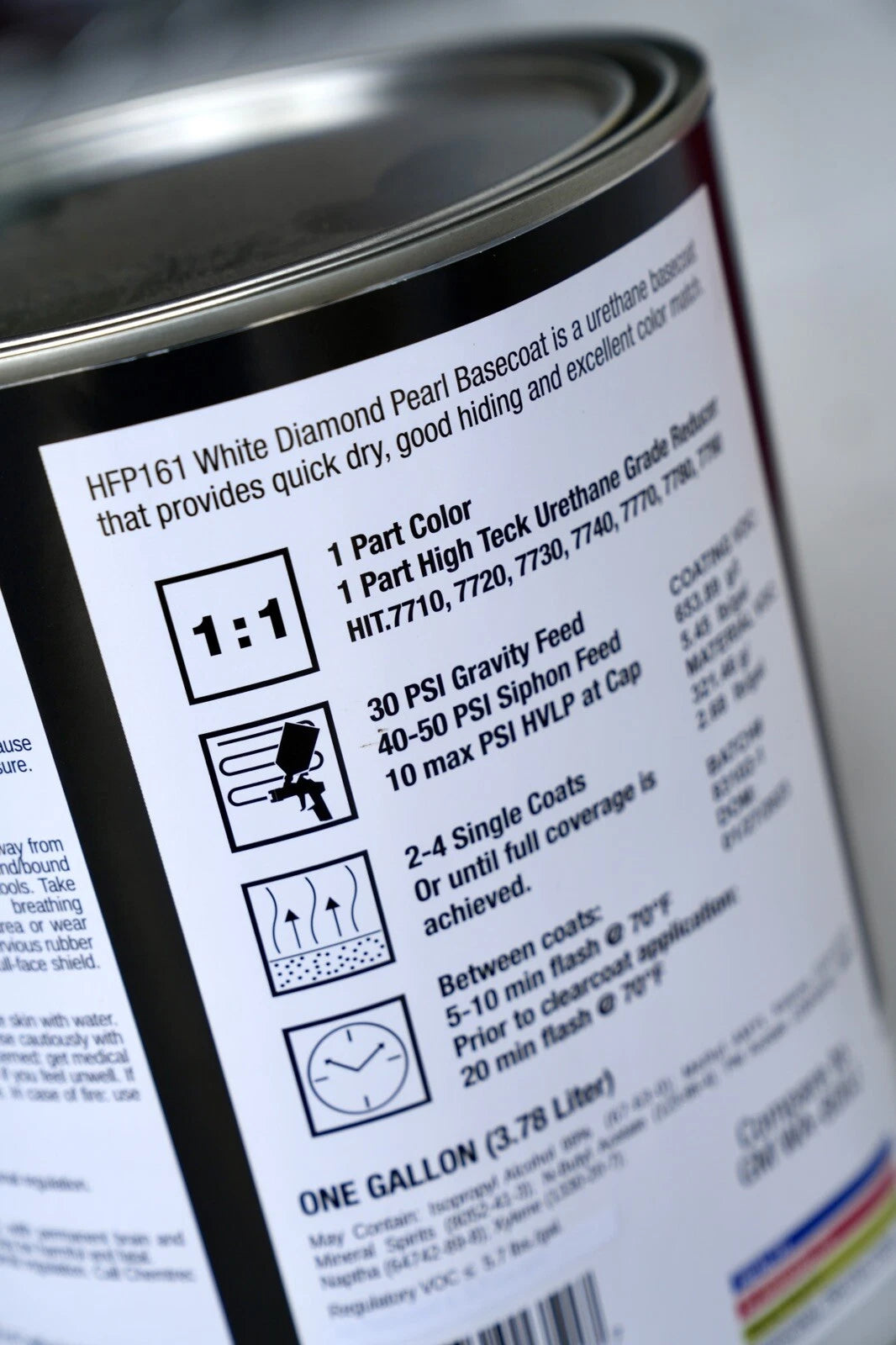

• Ratio: Mix 1:1 by volume with a urethane-grade reducer (e.g., High Teck Universal Reducer). For example, 1 gallon of HFP161 + 1 gallon reducer = 2 gallons sprayable.
  • Choose reducer speed based on temperature: fast (<70°F), medium (70–85°F), slow (>85°F).
  • Optional: Add up to 10% isocyanate hardener (basecoat hardener) to the unreduced paint for faster drying in humid conditions, but this shortens pot life.
• For Blending/Reducing Intensity: If blending into existing paint, mix the pearl with equal parts of a clear blending additive or base color (about 1 oz each) to soften the effect and improve transitions. Stir thoroughly—pearl particles settle, so agitate the can well.
• Pot Life: Indefinite if uncatalyzed; use within hours if hardened.
• Viscosity: Aim for 13–15 seconds in a #4 Zahn cup.

Do not over-reduce, as it can cause sagging or poor hiding.

Spray Gun Setup

• Gun Type: Gravity feed (preferred) or siphon feed; HVLP for low overspray.
  • Fluid Tip: 1.3–1.5 mm (gravity/HVLP) or 1.6–1.8 mm (siphon).
  • Air Pressure: 30 PSI at inlet (gravity), 10 PSI max at cap (HVLP), or 40–50 PSI (siphon).
• Pattern: Fan width 8–12 inches; adjust for even, wet coats without dry spray.
• Distance: Hold gun 6–8 inches from surface, perpendicular to avoid tiger striping.

Test spray on a scrap panel to dial in settings—pearl requires uniform application to prevent blotchiness.

Application Techniques

Apply in a controlled environment (70°F, <60% humidity) for best results. Use proper lighting (e.g., side lights) to check coverage, as pearl effects can look uneven under direct light.

1. Stage 1: White Ground/Basecoat (Not Included—Required First):
   • Use a matching white basecoat (e.g., High Teck HFP151 or GM white).
   • Apply 2–3 medium coats in an X-pattern (crisscross for evenness) at 13–14 PSI.
   • Flash Time: 10–15 minutes between coats until matte.
   • Extend base 4–5 inches beyond the repair area.
   • Let final base flash 10–15 minutes until tack-free. If it dries too long, lightly scuff with 1000 grit.
2. Stage 2: Pearl Midcoat (HFP161):
   • Apply over the dry white base—do not apply directly to primer or old paint.
   • Coats: 2–4 single, even coats until desired pearl effect (typically 2–3 for OEM match). Start light to build intensity.
     • Technique: Use straight, continuous passes from one end of the panel to the other with 50% overlap. Avoid stopping mid-pass to prevent mottling. For blending, use X-pattern and extend 4–6 inches past the base edge.
     • Pressure: Start at 13–14 PSI; drop 1 PSI for wetter edges on final coats.
     • Flash Time: 5–10 minutes between coats at 70°F (until hand-slick/matte).
   • Coverage: Aim for 0.4–0.8 mil dry film thickness. Over-application can cause clouding; under-application looks flat.
   • For Repairs: Blend into existing pearl by feathering coats outward. If edges highlight, scuff and reapply.
3. Stage 3: Clearcoat (Recommended—Not Included):
   • Apply within 20 minutes to 24 hours after midcoat (scuff if exceeded).
   • Use a 2K urethane clear (e.g., 4:1 or 2:1 mix ratio).
   • Coats: 2–3 full wet coats, flashing 10–15 minutes between.
   • Optional: Add 1–2 extra clear coats over pearl for depth and UV protection.

Walk away and inspect from different angles after each coat—adjust as needed.

Drying and Curing

• Flash Times: As noted per stage; extend in cooler/humid conditions.
• Air Dry: At 70°F, midcoat is ready for clear in 20 minutes; full cure in 24 hours.
• Force Dry: Not recommended for pearls—can cause cracking.
• Recoat Window: Max 24 hours without sanding.
• Final Cure: Vehicle ready for light use in 24–48 hours; full hardness in 7 days. Avoid washing/waxing for 30 days.

Tips and Common Mistakes to Avoid

• Even Coverage: Pearl is translucent—uneven base shows through. Always spray full panels for consistency.
• Blending: Extend each stage further than the last to hide transitions. If blend lines appear, it's often a base mismatch—pearl won't correct it.
• Environmental Factors: High humidity causes blushing; cold temps slow drying. Use slow reducer in heat to prevent dry spray.
• Common Errors: Overlapping too much leads to tiger stripes; rushing coats causes runs. Don't sand pearl midcoat aggressively—it removes the effect.
• Cleanup: Clean gun immediately with lacquer thinner to avoid clogs.
• Testing: Practice on scrap or hidden areas (e.g., under hood). Color match varies by application—OEM shades may differ slightly.
• Professional Advice: For best results, use in a booth with downdraft.
